Ford Ranger PX1 Head Unit Upgrade: Wireless CarPlay Done Right
If you're driving a Ford Ranger PX1 (2011–2015), you already know the factory stereo hasn't aged well. No Apple CarPlay, no Android Auto, a screen that looks a decade old — because it is. The rest of the truck might still be a workhorse, but the dash feels stuck in the past.
The fix doesn't require touching your dashboard trim or losing any factory functionality. Kayhan Audio's Version 6 head unit is a Ford Ranger head unit upgrade purpose-built for the PX1, and it comes in two screen sizes so you can pick the fit that suits your dash and budget.
The Two Ford Ranger PX1 Version 6 Options
| 9″ Version 6 | 13″ Version 6 | |
|---|---|---|
| Price | $1,425.00 | $1,695.00 |

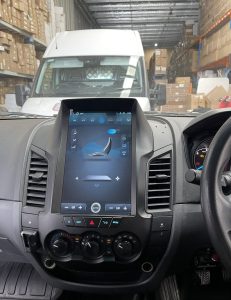

| Screen | 9-inch | 13-inch “big beast” display |
| Product link | 9″ Version 6 for PX1 | 13″ Version 6 for PX1 |
The only real difference between the two is screen size — everything under the hood is identical. If you want a clean factory-style look, the 9-inch keeps things subtle. If you want your PX1's dash to feel like a genuinely new vehicle, the 13-inch is the one people upgrade to.
What Both Units Come With
Every Version 6 unit for the PX1 ships with the same full feature set:
- Wireless Apple CarPlay & Android Auto
- Built-in DAB+ digital radio
- Netflix, Disney+, and full Google Play Store app support
- DSP + DTS tuning with 5.1-channel RCA output (75W)
- 360° camera ready
- Bluetooth 5.1 with data services
- HDMI, digital audio out, and a noise-cancelling microphone for calls
- 4G SIM card slot + Wi-Fi
- 8GB RAM and 256GB of storage
That 5.1-channel RCA output is worth calling out on its own — it means both units are ready to drive a proper multi-channel sound system, not just a basic stereo pair, if you ever want to build out your PX1's audio further down the track.
Under the Hood: What Powers the Version 6
Both the 9″ and 13″ Version 6 run on the same platform, so screen size is genuinely the only trade-off:
- Processor: Qualcomm QCM6125, a 64-bit ARM v8.0 octa-core chip (Kryo 260 CPU) on an 11nm process — four Kryo Gold performance cores at 2.0GHz and four Kryo Silver efficiency cores at 1.8GHz, rated around 58K DMIPS
- Graphics: 64-bit Qualcomm Adreno 610 GPU running at 950MHz
- Video processing: Adreno VPU433 core, decoding up to 4K30FPS in H.264, MPEG-2, VP8, VP9, and HEVC (8-bit and 10-bit), with 4K30 encode support
- Memory: 8GB LPDDR4X RAM + 256GB UFS storage
- Operating system: Android 11
In plain terms, this is the same tier of chip you'd find in a mid-range Android phone, not a stripped-down head-unit processor — which is why maps, apps, and CarPlay/Android Auto switch instantly instead of lagging like the factory system does.
You Keep Everything Your PX1 Already Has
A common worry with aftermarket head units is losing factory functionality. That's not the case here. Both the 9″ and 13″ Version 6 retain:
- Steering wheel controls
- Air conditioning controls
- Factory reversing camera
- Factory reversing sensors
Everything your PX1 already does, it keeps doing — you're just replacing the outdated screen and software underneath it.
Want a Better Reversing Camera Too?
If your factory reverse camera is looking a bit tired, both units support an optional HD reversing camera upgrade at the time of purchase, so you're not stuck with a low-res factory feed on a brand new high-res screen.
Which One Should You Choose?

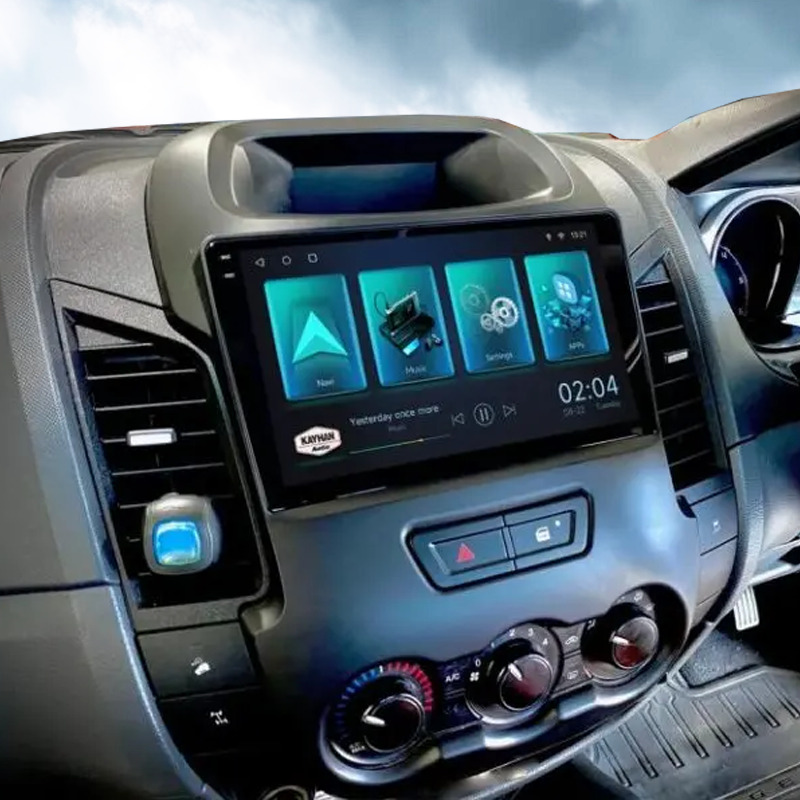

- Budget-conscious, want a factory-style look: go with the 9″ Version 6 ($1,425)
- Want the dash to feel like a completely different vehicle: go with the 13″ Version 6 ($1,695)
Both are built specifically for the PX1's dash and wiring, so installation stays plug-and-play either way — no cutting, no rewiring your steering wheel controls or aircon from scratch.
Shipping
Kayhan Audio ships Australia-wide and worldwide, so whether you're in Sydney, regional WA, or overseas, both PX1 units can be delivered to your door.
Frequently Asked Questions
Does the Ford Ranger PX1 head unit support wireless Apple CarPlay and Android Auto?
Yes. Both the 9″ and 13″ Version 6 units support wireless Apple CarPlay and wireless Android Auto, plus USB wired connections if you prefer.
What's the difference between the 9-inch and 13-inch Ford Ranger PX1 head unit?
Screen size only. Both run the same processor, RAM, storage, and feature set — the 9″ ($1,425) keeps a factory-style dash look, while the 13″ ($1,695) fills more of the dash for a bigger, more modern display.
Will I lose my steering wheel controls or air conditioning controls?
No. Both Version 6 units retain full steering wheel controls and factory air conditioning controls.
Does it work with my Ford Ranger PX1's factory reversing camera and sensors?
Yes. Both units retain your factory reversing camera and reversing sensors, and an HD reversing camera upgrade is available separately if you want to replace the factory feed.
How much does a Ford Ranger PX1 head unit cost?
The 9″ Version 6 is $1,425.00 and the 13″ Version 6 is $1,695.00.
Does Kayhan Audio ship the Ford Ranger PX1 head unit worldwide?
Yes. Kayhan Audio ships Australia-wide and worldwide.
What processor does the Version 6 head unit use?
Both units run a Qualcomm QCM6125 octa-core processor with an Adreno 610 GPU, 8GB RAM, and 256GB storage.
Final Word
The Ford Ranger PX1's cabin still holds up — it's the tech that's fallen behind. A Version 6 head unit brings wireless CarPlay, Android Auto, DAB+, and proper multi-channel audio into a truck that's otherwise built to last, without touching a single factory control you rely on every day.
Ready to buy your Ford Ranger PX1 head unit? Both models below ship Australia-wide and worldwide.
Shop now:
Ford Ranger PX1 Version 6 – 9 Inch, $1,425.00
Ford Ranger PX1 Version 6 – 13 Inch, $1,695.00
