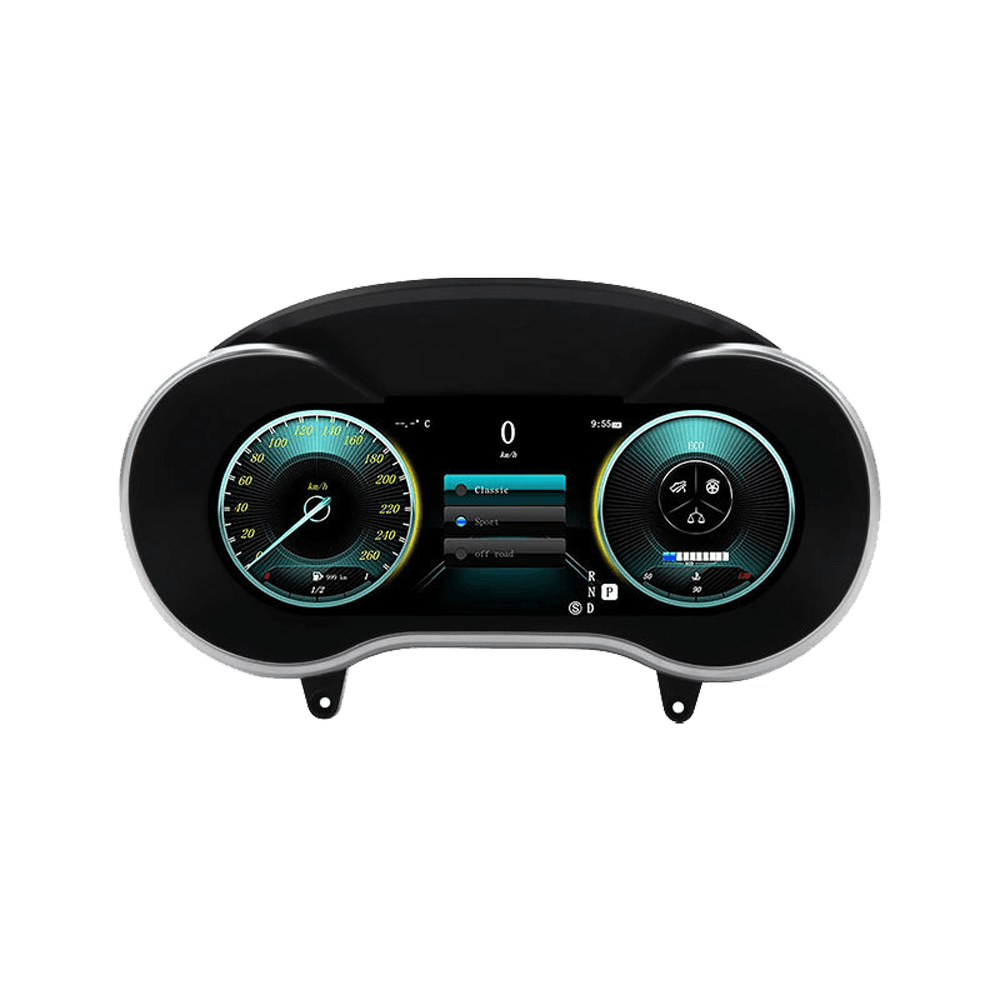

Digital Instrument Cluster for Mercedes-Benz C-Class & GLC W205 | NTG 5.0/5.1 (2015–2018)

The Digital Instrument Cluster delivers a modern, intelligent upgrade to your vehicle’s dashboard, combining high-definition visuals, real-time vehicle data, and reliable automotive-grade performance. Designed for seamless integration with factory systems, it enhances both driving experience and vehicle aesthetics.

Advanced System Performance

Powered by a T507 quad-core processor (1.5GHz) and running on Linux 4.9.170, the cluster ensures fast response times, smooth graphics rendering, and long-term system stability. With 1GB RAM and 4GB internal storage, the system is optimized specifically for digital instrumentation and vehicle data display.

Smart Connectivity & Audio Integration

Featuring Bluetooth 5.3 with dual Bluetooth support, the cluster allows two devices to connect simultaneously. A built-in speaker enables hands-free calling and system alerts, while audio can also be routed through the vehicle’s original speakers. The cluster connects to the factory head unit via Bluetooth for music playback, ensuring seamless multimedia integration without additional wiring.

High-Definition IPS Display

Equipped with a 12.3-inch IPS display at 1920 × 720 resolution, the cluster offers sharp visuals, high brightness, and wide viewing angles. Information remains clear and easy to read in both daylight and nighttime driving conditions.

Comprehensive Vehicle Data Display

The digital cluster provides real-time access to essential driving and vehicle information, including:

• Speed, RPM, and gear position

• Fuel consumption data

• Oil temperature and oil pressure

• Coolant (water) temperature

• Vehicle body balance display

• Real-time driving and vehicle status information

Original tire pressure information is supported with optional Bluetooth TPMS sensors (sold separately).

Multiple Driving Modes

Users can customize the display to match different driving styles through multiple UI themes:

• Classic Mode – clean and traditional layout

• Sport Mode – performance-focused interface

• Off-Road Mode – enhanced visualization for rugged driving conditions

Automotive-Grade Electrical Design

Built for vehicle environments, the cluster supports an operating voltage range of 9V–16V, with a working current of 0.8A–1.5A. An ultra-low standby current below 3mA minimizes battery drain when the vehicle is not in use.
