Car Stereo with SatNav for Hyundai i30 2012-2018 | V6+ | 7 Inch
SKU: CP-3434
$1595.00
Select your Options
Add On
Kayhan 360° Camera Kit (V6)
$199
Regular HD DashCam
$95
HD Reversing Camera
$75
Display Port (DP) to HDMI Adaptor
$49
External A/C Control
$135
Front Camera
$45
OBDII
$59
Smart Wireless Charging Car Phone Holder
$75
Kayhan Amplifier 3000 Watt 5 Channel
$375
Out of Stock
Kayhan Amplifier 4000 Watt Mono Block
$550
Composite car speaker set
$579
Kayhan Amplifier 8000 Watt Mono Block
$635
Automotive Wire Wrap Tape
$15
.png&w=1080&q=75)
Car Trim Removal Tool Kit – Interior Panel & Stereo Pry Tools
$36
Blind Spot Detection System with Lane Change & Door Warning
$349
Out of Stock
Product Description

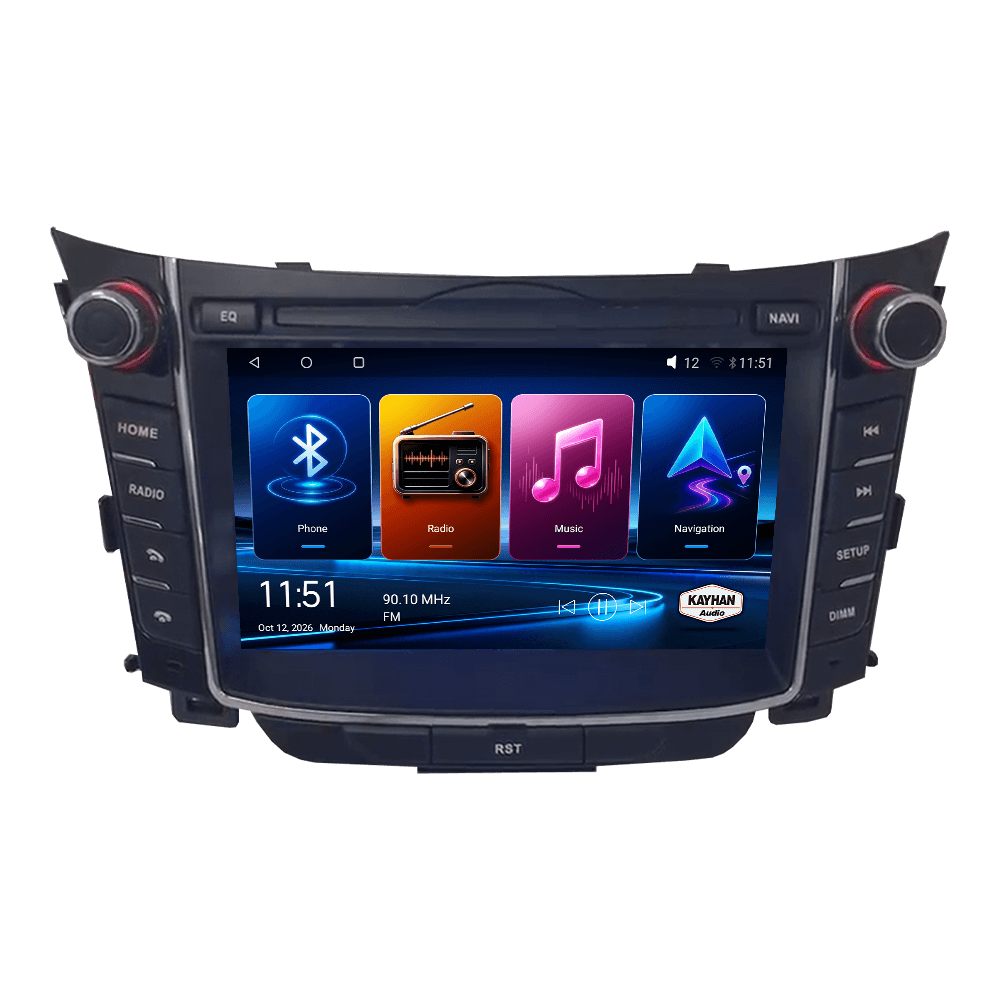

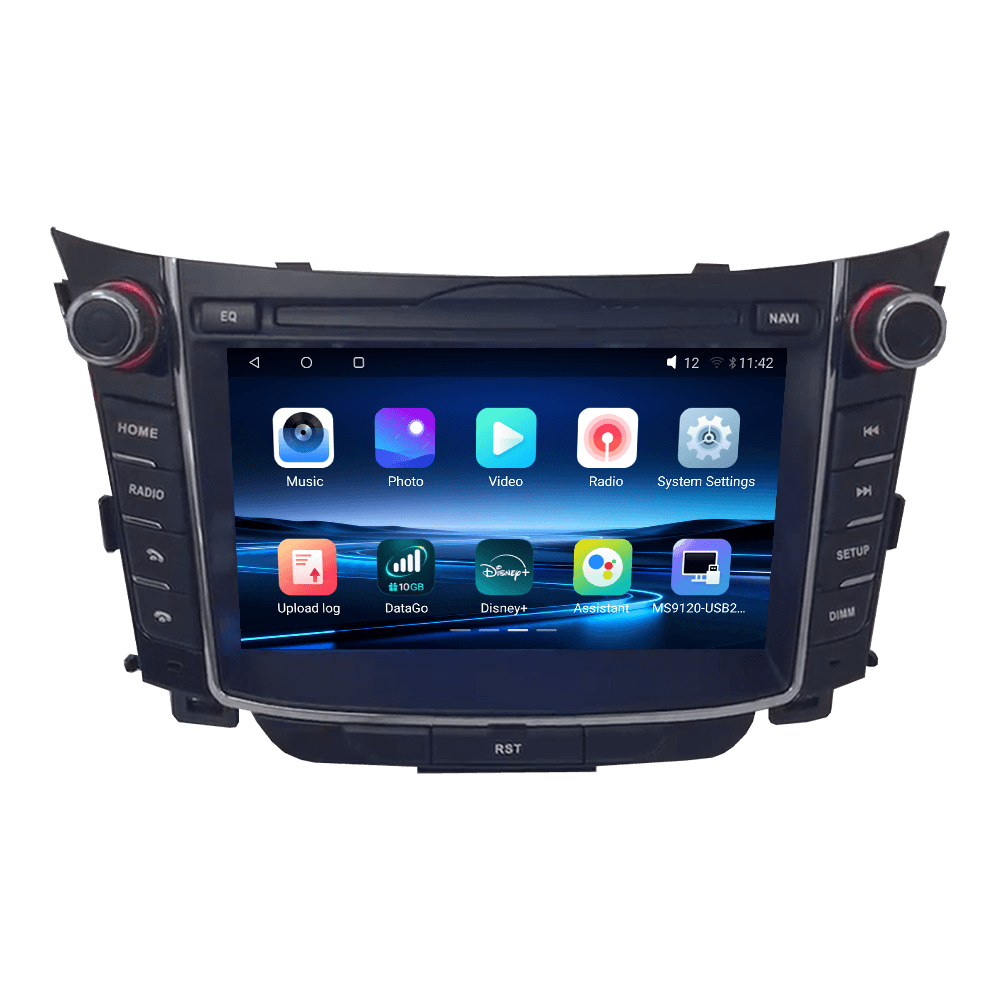

Hyundai i30 2012–2018 7" Version 6+ Android Head Unit
Give your 2012–2018 Hyundai i30 a modern multimedia system with the Kayhan Audio Version 6+ 7-inch Android head unit. It's built specifically for the i30 and comes with its own surrounding fascia, so it fits neatly into the original dash with a factory-style finish. Your car gets current smartphone integration, fast performance and premium audio without losing the features you use every day.
Fast, Powerful Performance
The Version 6+ platform runs Android 14 on a Qualcomm SM6225 octa-core processor, with 8GB of RAM and 256GB of storage. Maps, music and apps load quickly and run smoothly, and there's plenty of room for offline maps, playlists and downloaded content.

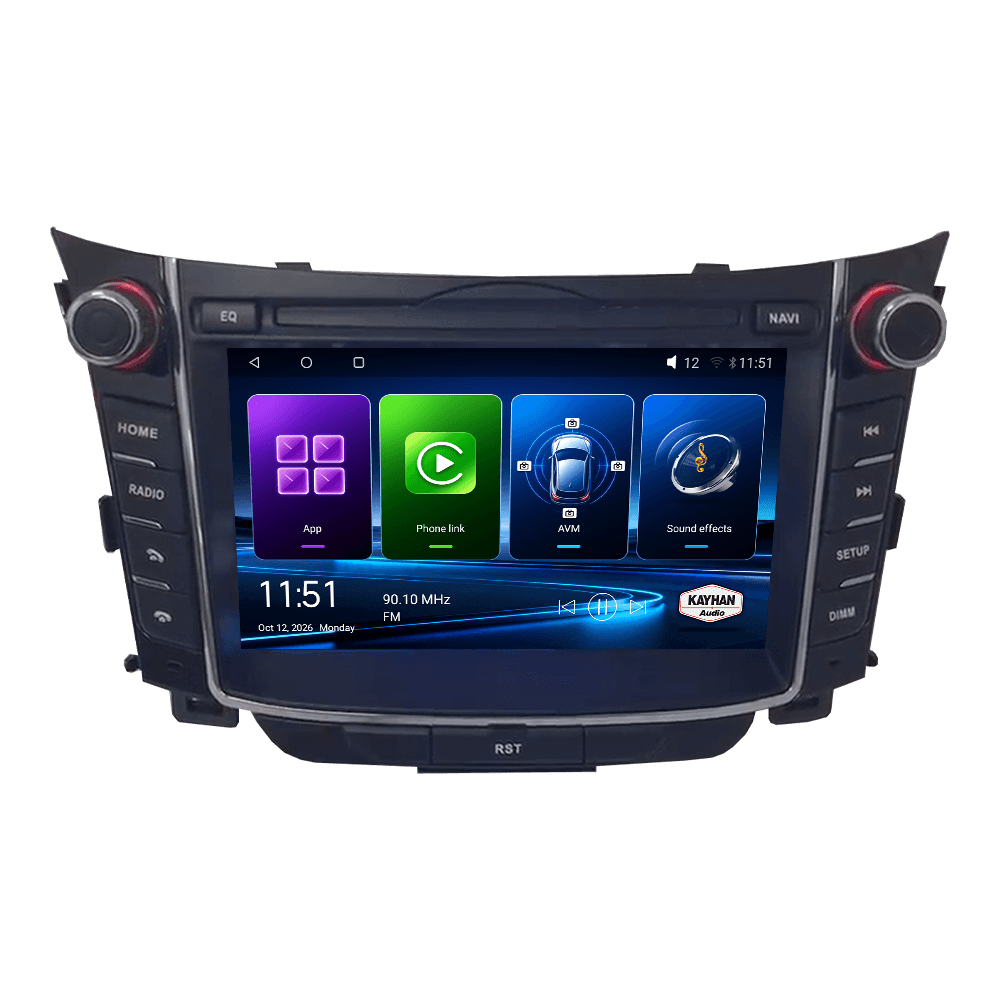

Wireless Apple CarPlay & Android Auto
Wireless Apple CarPlay and Android Auto connect your phone as soon as you get in, and wired connection is there whenever you want it. You can make hands-free calls, stream music over Bluetooth 5.0, and use navigation and messaging on the responsive 7-inch touchscreen. Built-in 4G LTE with eSIM and external SIM support, plus 5GHz Wi-Fi, keeps you online on the road, even without your phone.

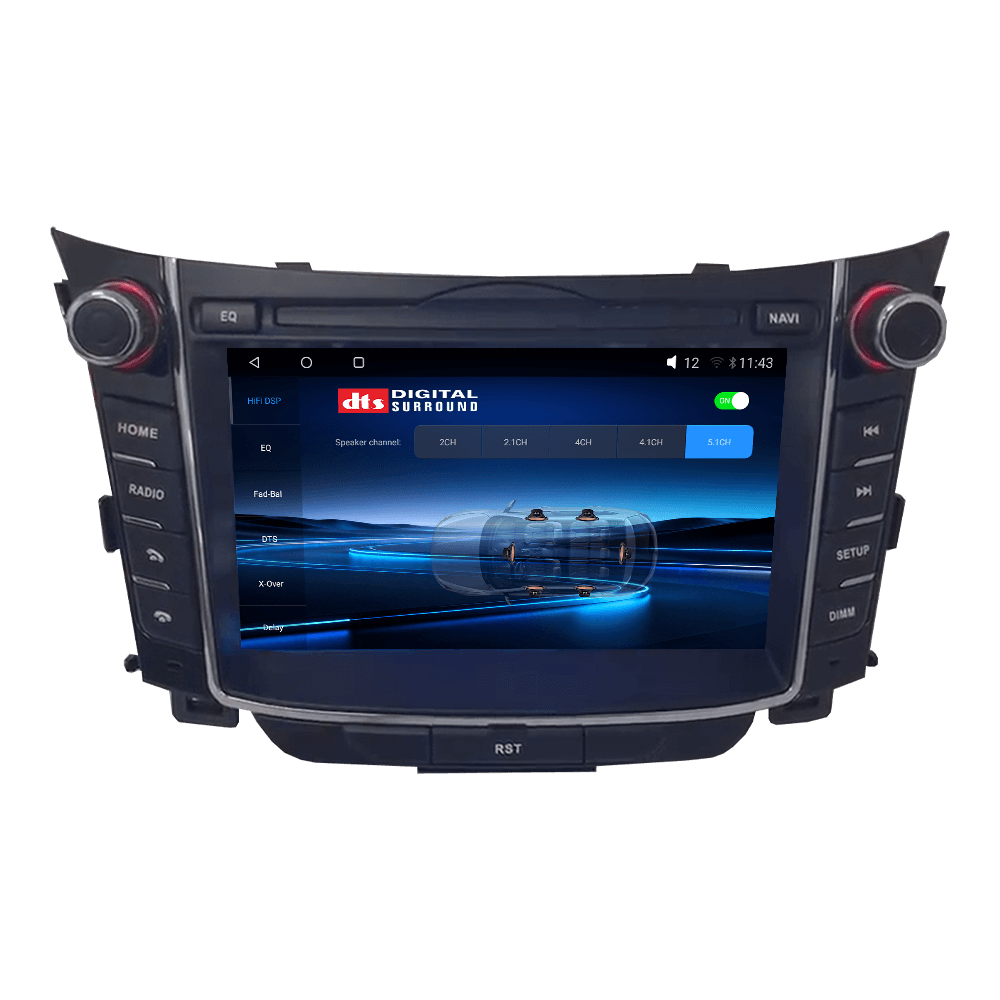

Premium Audio System
The audio is a big step up from factory too. A 45W × 4 built-in amplifier drives your speakers, and 8-channel 4V RCA outputs make it easy to add amplifiers and subwoofers later. DTS HiFi sound processing, a 48-band equaliser, TruBass and 5.1-channel support let you fine-tune the sound to suit your i30's cabin. Optical and coaxial digital outputs are included for more advanced audio builds.
360° Camera Support & GPS Navigation
For safety and convenience, the unit supports 1080P AHD cameras and has built-in 360° panoramic camera support, so parking and tight manoeuvres are easier. Multi-system GPS covers GPS, GLONASS, BeiDou, Galileo and QZSS for accurate navigation anywhere in Australia.
FREE DAB+ Digital Radio Module
A FREE external DAB+ module tuned for Australian frequency bands is included, so you get crystal-clear digital radio straight out of the box.
Factory Features Retained
Most importantly, it keeps the i30 functions you rely on. Your steering wheel controls keep working, reverse detection is supported, and the system is compatible with the factory reverse camera. Installation is clean and straightforward with a plug-and-play harness, and the surrounding fascia is included with the head unit.
Hyundai i30 2012–2018 — Version 6+. Modern technology. Factory functionality. One smart upgrade.
Hyundai i30 2012–2018 7" Version 6+ – Technical Specifications
Display
| Screen Size | 7 inches |
| Screen Type | TFT-LCD, Active Matrix |
| Touch Panel | Capacitive multi-touch |
| Resolution | 1024 × 600 pixels (HD) |
| Orientation | Horizontal (landscape) |
| Colour Depth | 16.7 million colours |
| Backlight | LED |
| Fitment | Supplied with i30-specific surrounding fascia |

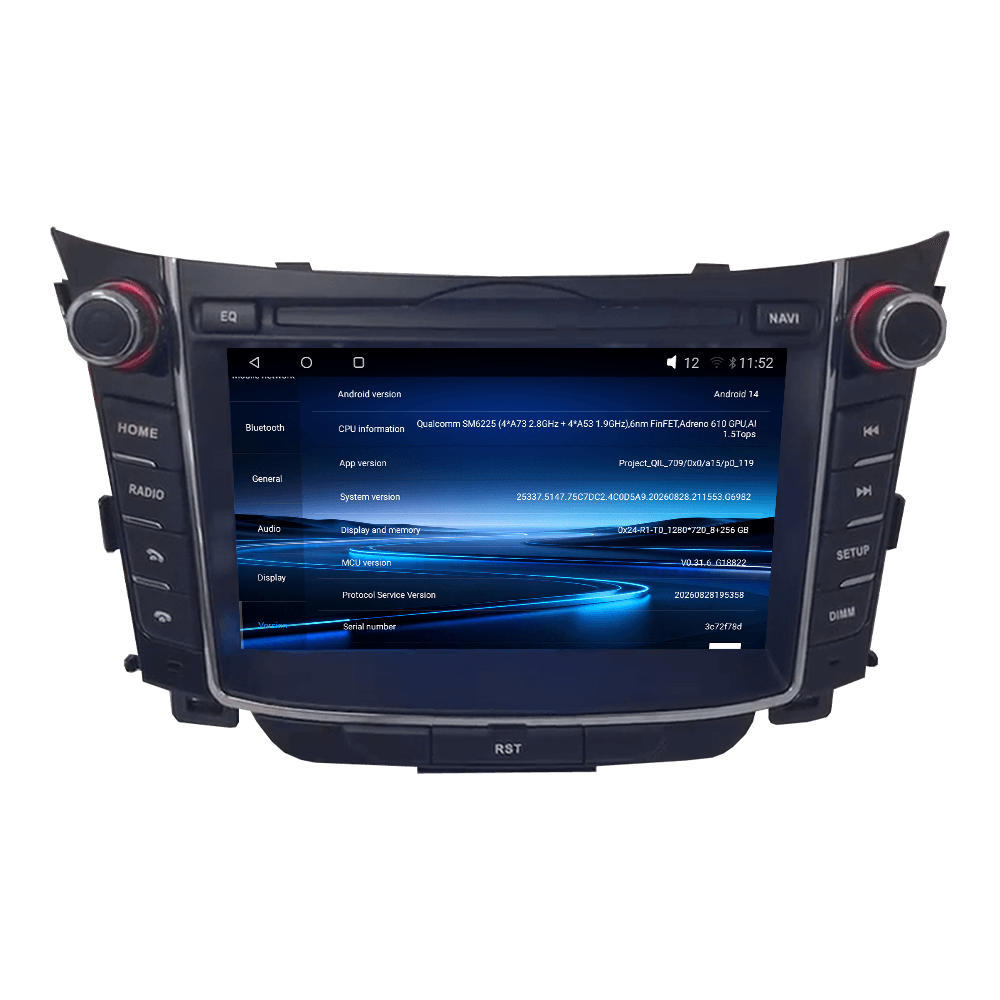

Performance
| Platform | Kayhan Audio Version 6+ |
| Operating System | Android 14 |
| Processor | Qualcomm SM6225 Octa-Core |
| CPU | 64-bit Cortex-A73, up to 2.8GHz |
| GPU | Qualcomm Adreno 610 |
| Process Technology | 6nm |
| RAM | 8GB LPDDR4 |
| Storage | 256GB eMMC |
Smartphone Integration
| Apple CarPlay | Wireless / Wired |
| Android Auto | Wireless / Wired |
| Bluetooth Hands-Free Calling | Supported |
| Bluetooth Music Streaming | Supported |
| Phone Interconnection | Supported |
4G LTE, Wi-Fi & Bluetooth
| 4G Modem | LTE Cat 6 |
| Maximum Downlink | Up to 300Mbps |
| Carrier Aggregation | 2 × 20MHz |
| SIM | Built-in eSIM support + external SIM card support |
| Wi-Fi | 5GHz |
| Bluetooth | Bluetooth 5.0 |
Audio
| Built-In Amplifier | 45W × 4 |
| RCA Audio Output | 8-channel, 4V RMS |
| Audio Support | 5.1-channel, 2-way and 3-way systems |
| Equaliser | 48-band EQ |
| Sound Processing | DTS HiFi-grade digital sound effects |
| Sound Field | Multiple surround sound modes |
| Bass Enhancement | TruBass |
| Virtual Centre Channel | Supported |
| Digital Audio | Optical + coaxial output |
Camera Support
| AHD Video Inputs | Up to 6 × 1080P AHD video inputs |
| 360° Camera | Built-in 360° panorama support |
| 360° Camera Inputs | 4-channel |
| Front Camera | Supported |
| Reverse Camera | Supported |
Factory Features Retained
| Steering Wheel Controls | Supported |
| Factory Reverse Camera | Compatible |
| Reverse Detection | Supported |
| Factory-Style Dash Fit | Yes – surrounding fascia included |
| Wiring | Plug-and-play harness |
GPS Navigation
| Satellite Systems | GPS / GLONASS / BeiDou / Galileo / QZSS |
USB & Connectivity
| USB 2.0 | 2 ports standard |
| Third USB Port | Optional |
| USB 3.1 Type-C | Output supported |
| USB Media Playback | Supported |
| Dedicated USB | DAB / USB camera support |
| External Microphone | Supported |
Radio
| DAB+ | FREE external DAB+ module included (Australian bands) |
| FM | 87.5–108MHz |
| AM | 522–1620kHz |
| Radio IC / DSP | Silicon Labs SI47925 |
| RDS / RBDS | Supported |
| Radio Antenna | Dedicated radio antenna interface |
Power & Protection
| Power Input | 9V–16V |
| Typical Vehicle Voltage | 14.4V |
| Protection | Over-voltage and under-voltage protection |
Compatibility
| Vehicle | Hyundai i30 2012–2018 |
Compatible Vehicles
This product supports the following vehicle models
Frequently Asked Questions
This head unit is designed specifically for the Hyundai i30 2012–2018 with the factory 7-inch screen. If you're not sure your car matches, contact our team with your build year and model, and we'll confirm fitment before you order.
Yes. The head unit comes with its own surrounding fascia, made to fit the i30 dash. It gives a clean, factory-style finish with no gaps or generic trim.
Yes. It supports both wireless and wired Apple CarPlay and Android Auto. Once you've paired your phone, it connects automatically each time you start the car.
Yes. Your factory steering wheel controls are retained, so you can still change volume and tracks and answer calls without taking your hands off the wheel.
Yes. The system is compatible with the factory reverse camera and supports reverse detection, so the camera view appears automatically when you select reverse.
Yes. The unit has built-in 360° panoramic camera support with 4-channel camera inputs and supports up to six 1080P AHD cameras, including front and reverse cameras. Contact us about compatible camera kits for your i30.
No. The unit has built-in 4G LTE with eSIM and external SIM card support, plus 5GHz Wi-Fi. You can stream music, use live traffic navigation and run online apps without tethering to your phone.
Yes. A FREE external DAB+ module is included. It's tuned for Australian frequency bands for clear digital radio reception. AM/FM radio is built in as well.
Yes. As well as the 45W × 4 built-in amplifier, the unit has 8-channel 4V RCA outputs plus optical and coaxial digital outputs, so it's easy to add external amplifiers and subwoofers as your system grows.
It has 8GB of RAM and 256GB of storage, running Android 14 on a Qualcomm SM6225 octa-core processor. There's plenty of room for offline maps, music and apps.
The unit is designed for a clean, vehicle-specific fit. For the best result and to make sure every factory feature works correctly, we recommend professional installation. Contact our team for installation advice or to book an install.
