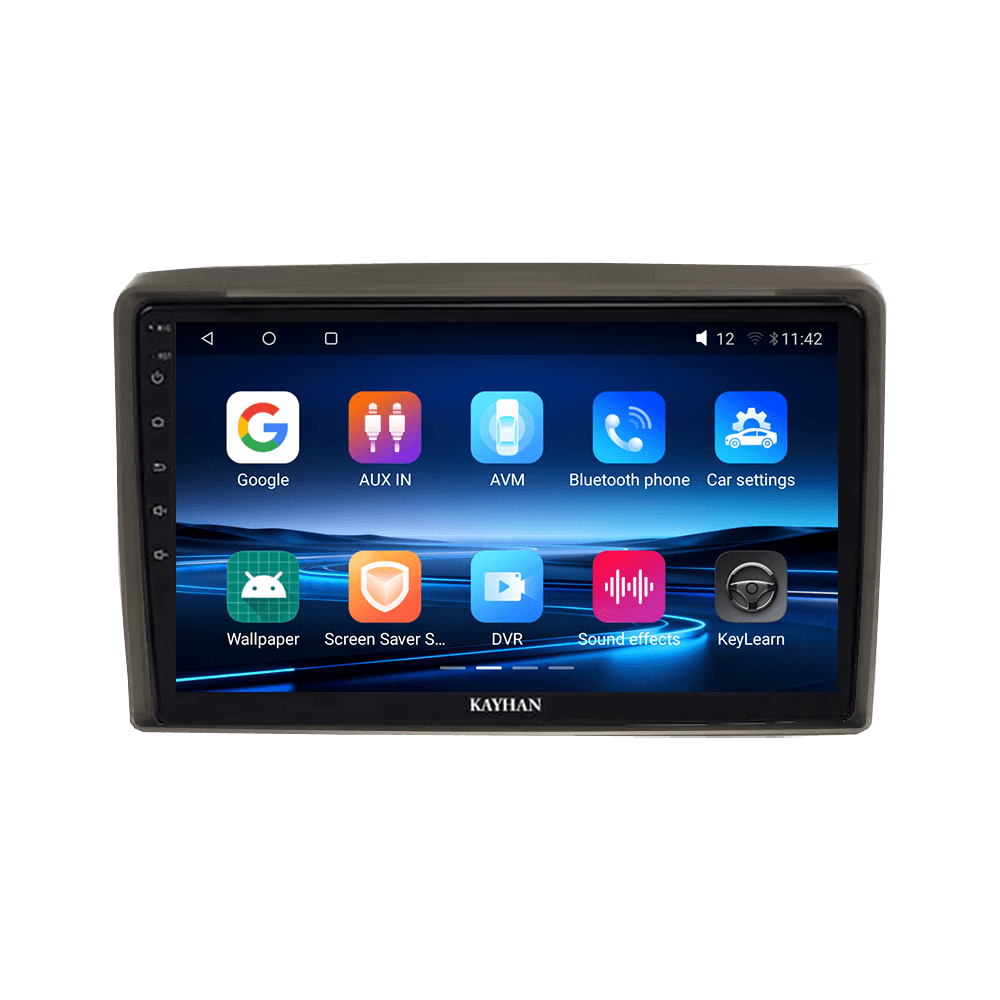

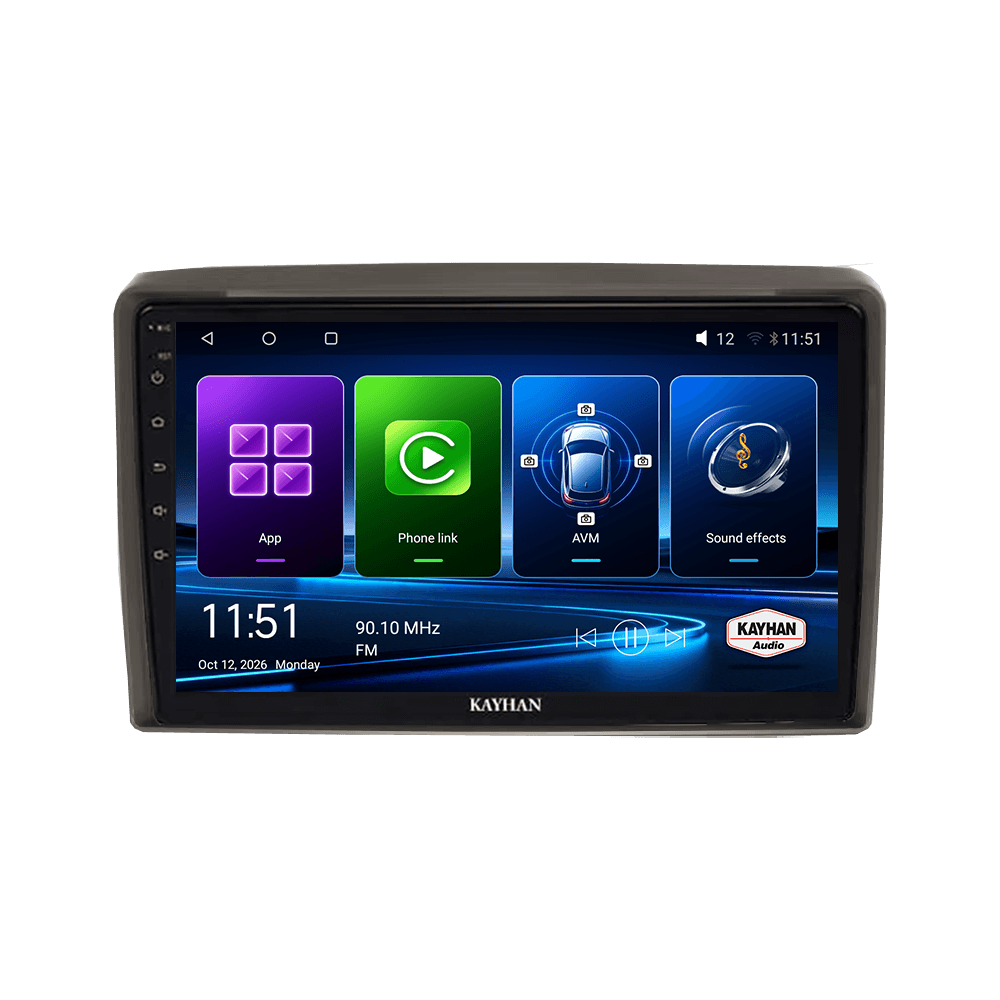

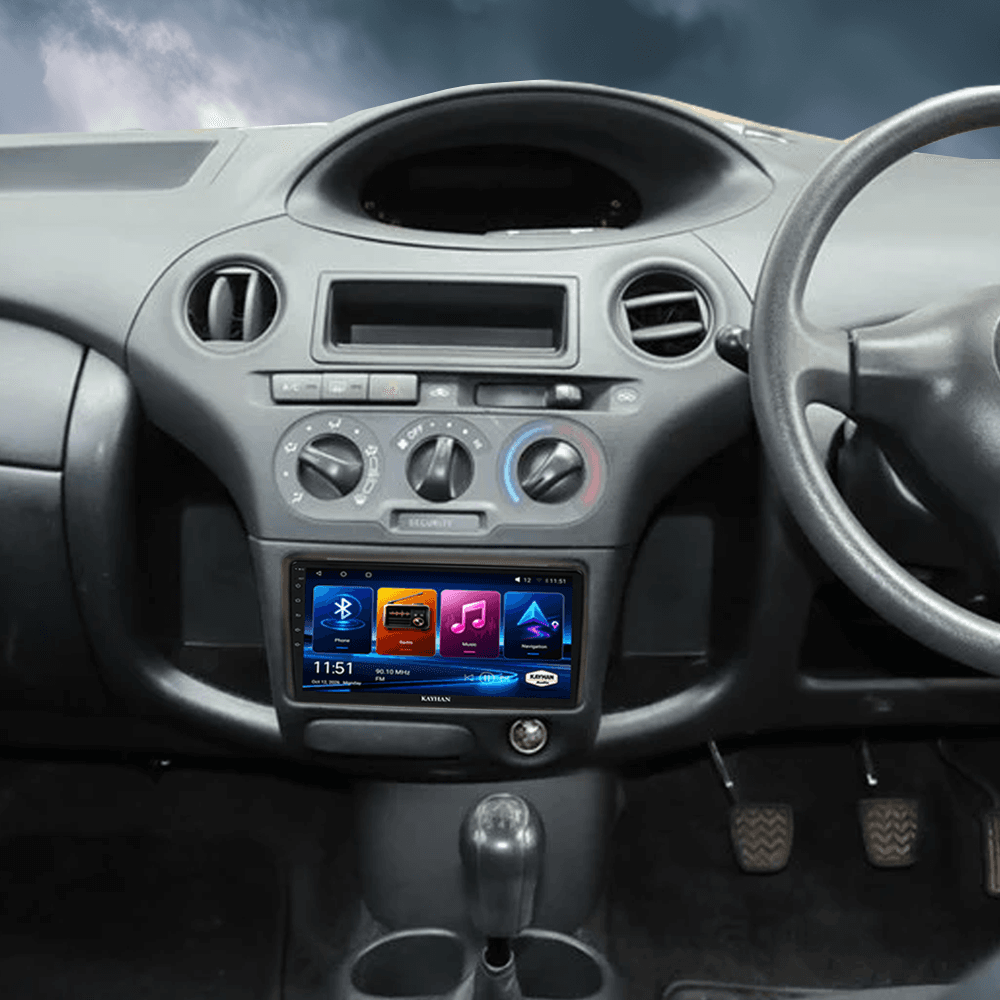

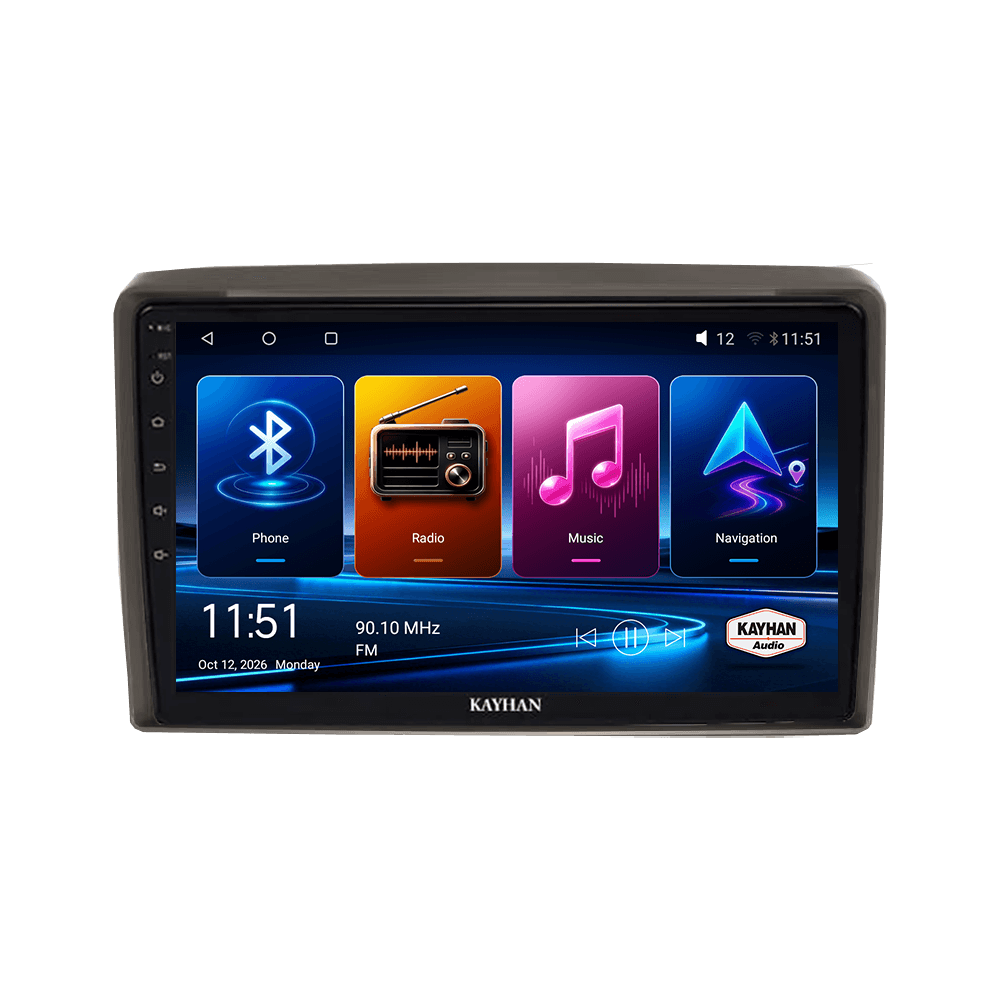

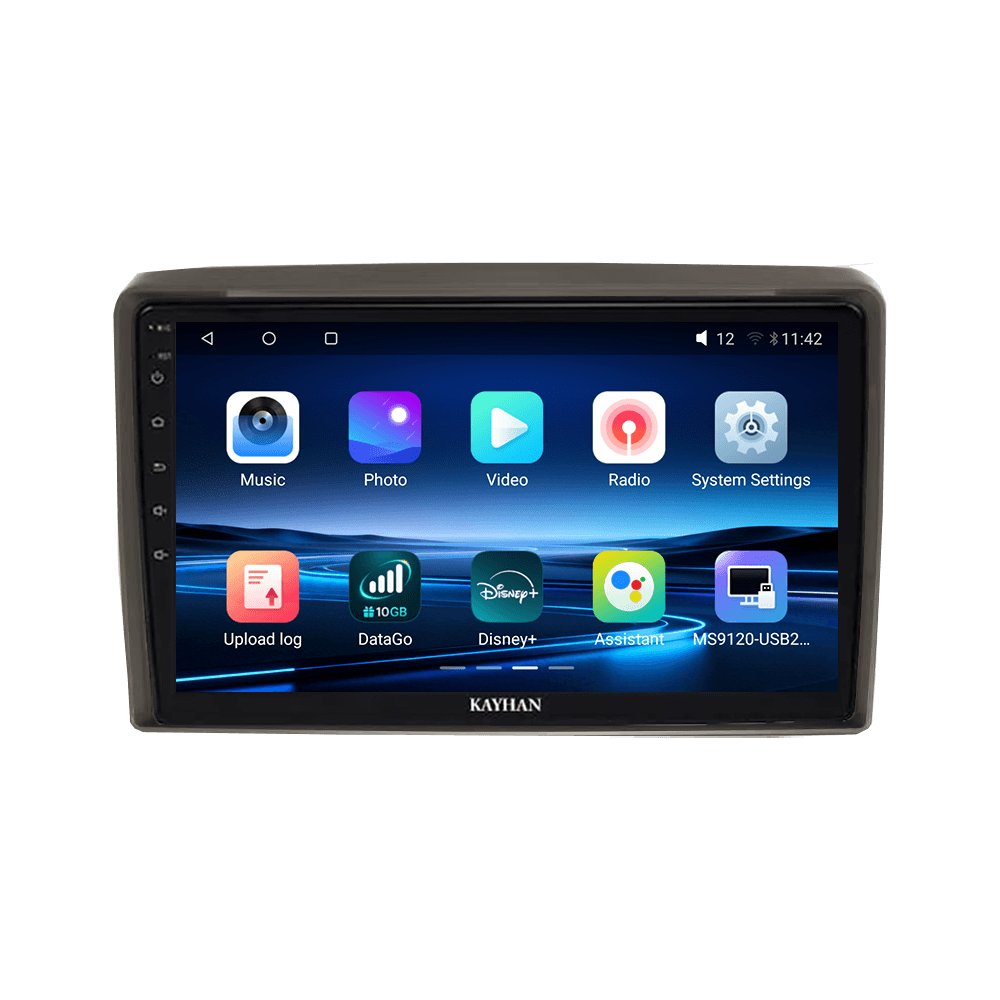

Car Stereo with SatNav for Toyota echo 1999 - 2005 | 9 inch |V6+
SKU: CP-3437
$1395.00
Select your Options
Add On
Kayhan 360° Camera Kit (V6)
$199
Regular HD DashCam
$95
HD Reversing Camera
$75
Display Port (DP) to HDMI Adaptor
$49
External A/C Control
$135
Front Camera
$45
OBDII
$59
Smart Wireless Charging Car Phone Holder
$75
Kayhan Amplifier 3000 Watt 5 Channel
$375
Out of Stock
Kayhan Amplifier 4000 Watt Mono Block
$550
Composite car speaker set
$579
Kayhan Amplifier 8000 Watt Mono Block
$635
Automotive Wire Wrap Tape
$15
.png&w=1080&q=75)
Car Trim Removal Tool Kit – Interior Panel & Stereo Pry Tools
$36
Blind Spot Detection System with Lane Change & Door Warning
$349
Out of Stock
No Description
Toyota Echo 9" inch : Technical Specifications

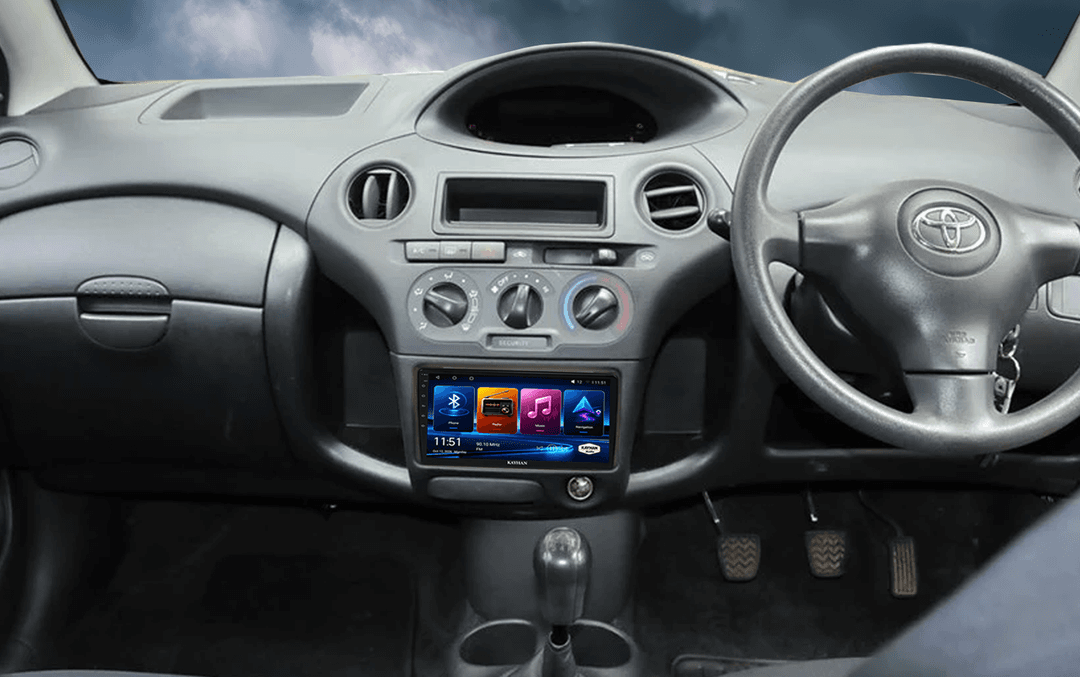

| Vehicle Compatibility | Toyota echo |
What's in the Box
| Head Unit | 9" Android head unit |
| DAB+ Module | External DAB+ module included FREE |
| Installation | Everything needed to install the unit included |
Display
| Screen Type | TFT-LCD, Active Matrix |
| TFT Technology | Amorphous Silicon (a-Si) TFT |
| Screen Size | 9 inches |
| Aspect Ratio | 4:3 |
| Resolution | 1024 × 768 pixels (XGA) |
| Refresh Rate | 60Hz |
| Brightness | 500 cd/m² typical (400 cd/m² minimum) |
| Contrast Ratio | 900:1 typical |
| Colour Depth | 16.7 million colours |
| Viewing Angle | 85° typical in all directions |
| Surface | Anti-glare + 3H hard coating |
| Backlight | LED, side-light type |
| Response Time | 30ms typical |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Mode | Normally Black |

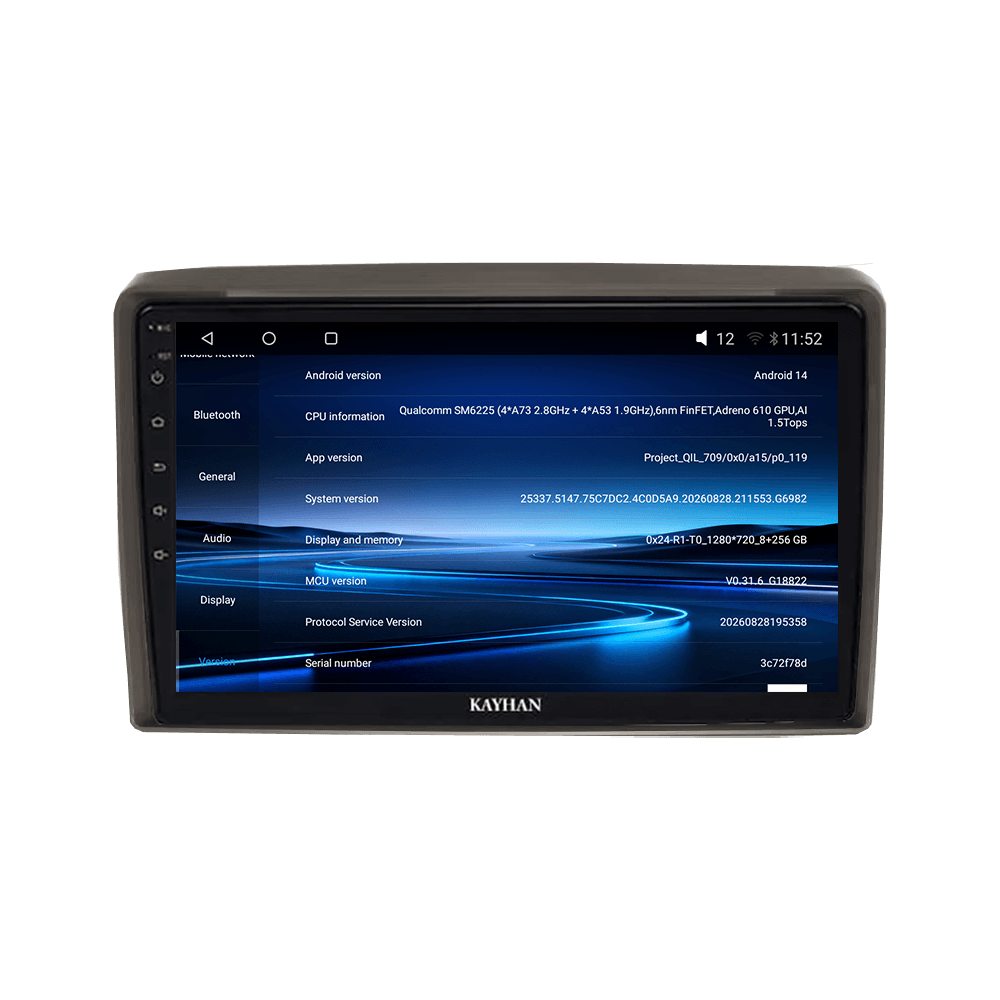

Processor & Memory
| Operating System | Android 14 |
| Processor | Qualcomm SM6225 Octa-Core |
| CPU | 64-bit Cortex-A73, up to 2.8GHz |
| GPU | Qualcomm Adreno 610 |
| Process Technology | 6nm |
| RAM | 8GB LPDDR4 |
| Storage | 256GB eMMC |

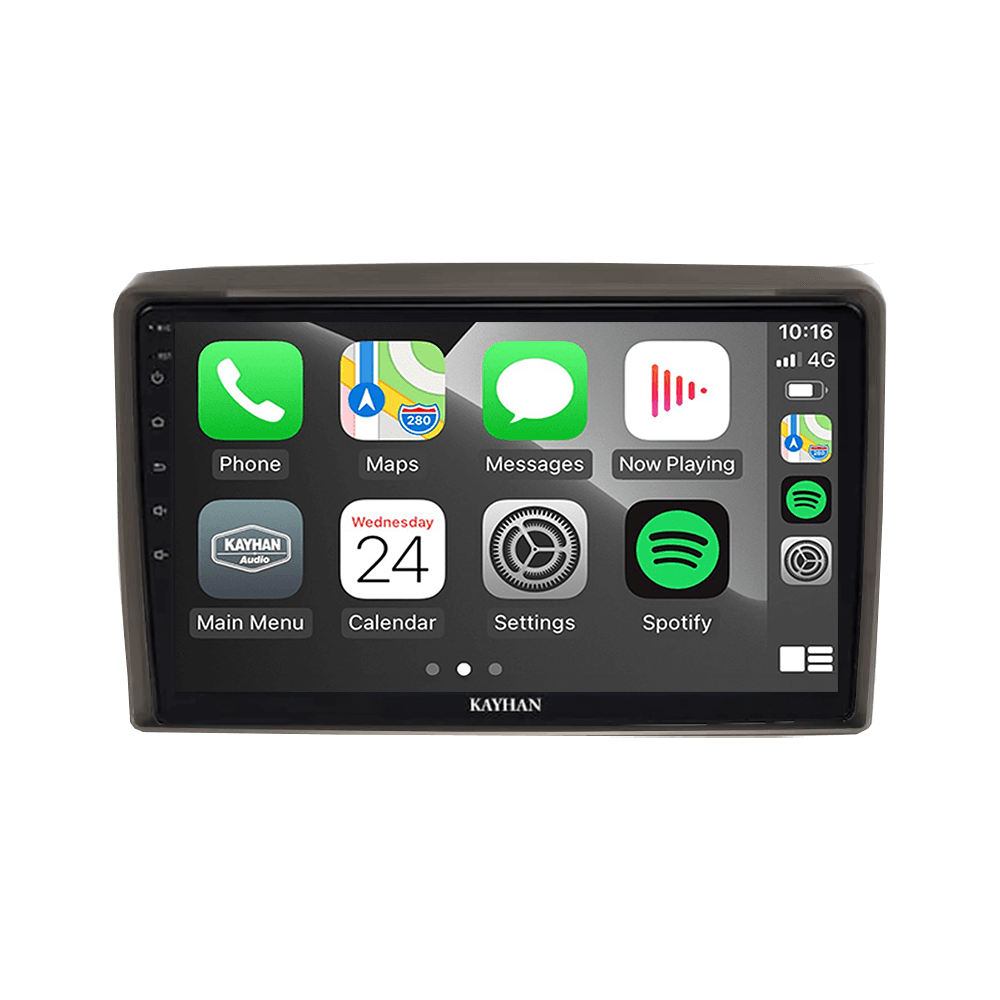

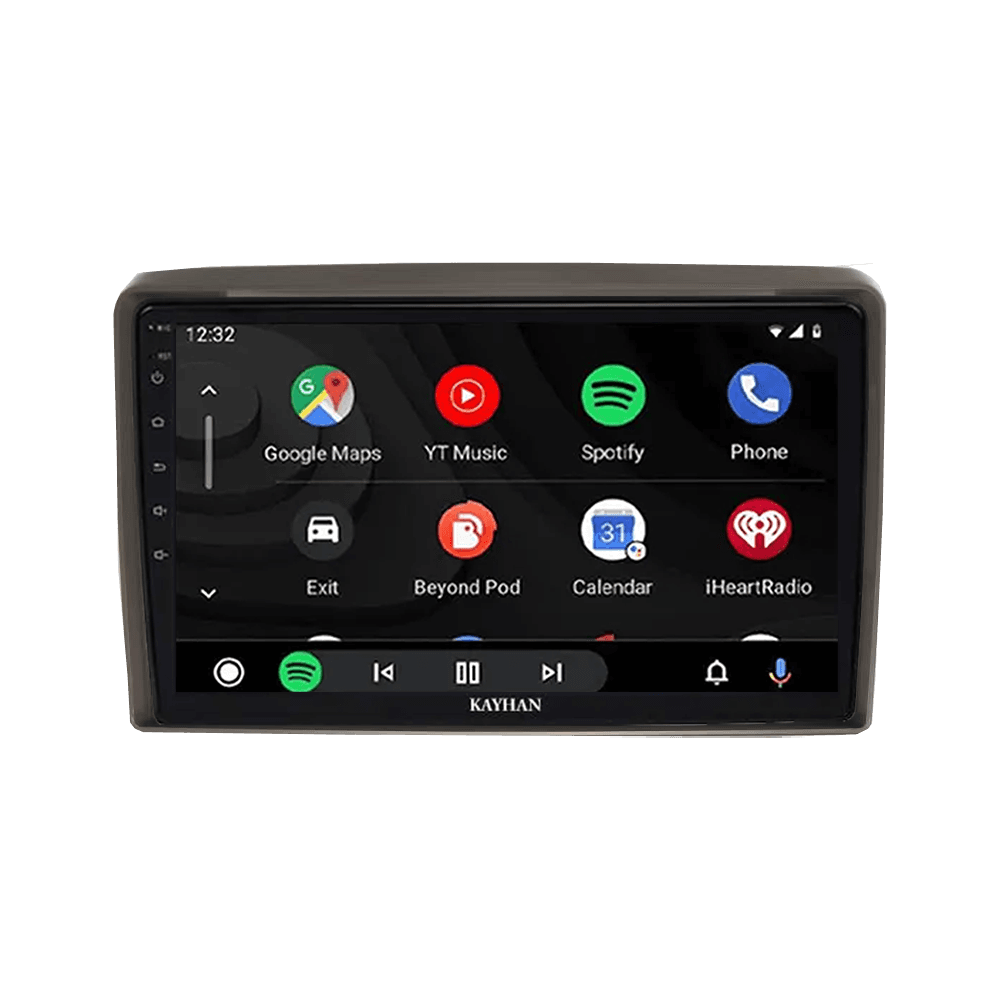

Apple CarPlay & Android Auto
| Apple CarPlay | Wireless / Wired |
| Android Auto | Wireless / Wired |
| Bluetooth Hands-Free Calling | Supported |
| Bluetooth Music Streaming | Supported |
| Phone Interconnection | Supported |
4G LTE, Wi-Fi & Bluetooth
| 4G Modem | LTE Cat 6 |
| Maximum Downlink | Up to 300Mbps |
| Carrier Aggregation | 2 × 20MHz |
| SIM | External SIM card support |
| Wi-Fi | 5GHz |
| Bluetooth | Bluetooth 5.0 |

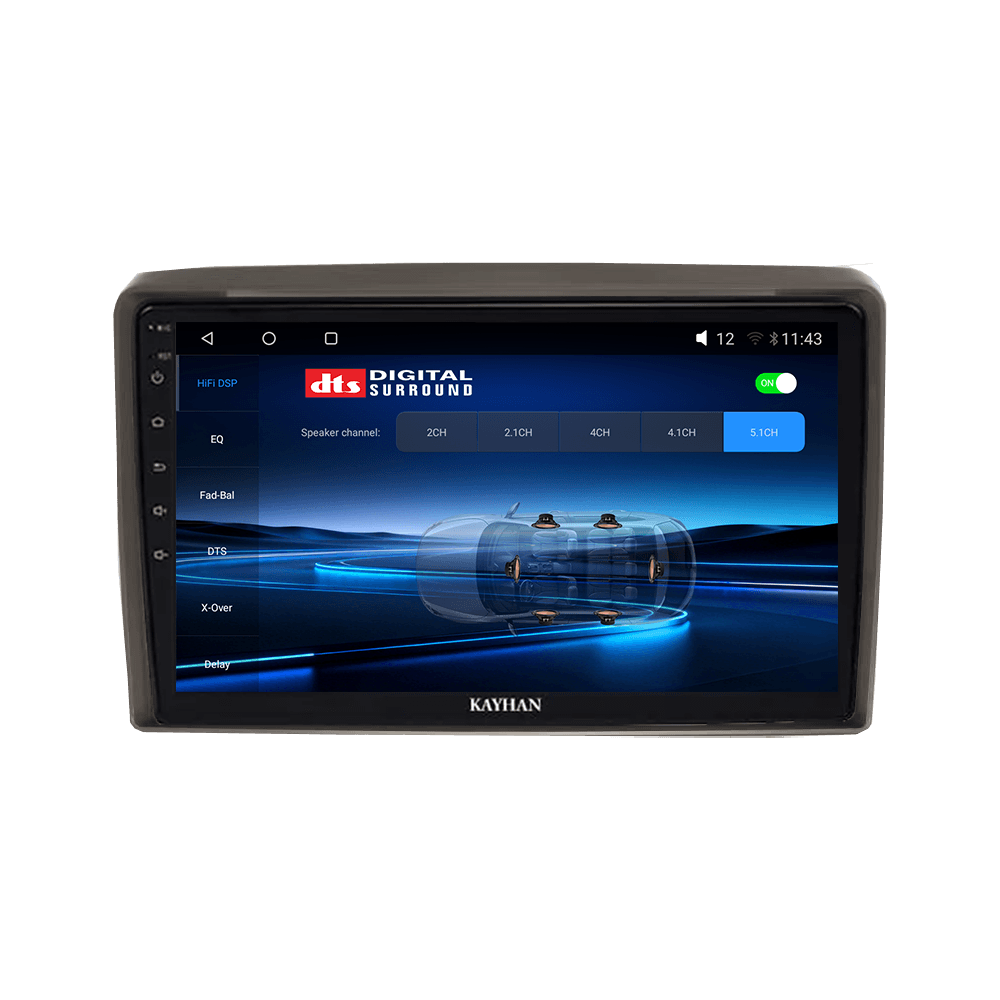

Audio
| Built-In Amplifier | 45W × 4 |
| RCA Audio Output | 8-channel, 4V RMS |
| Audio Support | 5.1-channel, 2-way and 3-way systems |
| Equaliser | 48-band EQ |
| Sound Processing | DTS HiFi-grade digital sound effects |
| Sound Field | Multiple surround sound modes |
| Bass Enhancement | TruBass |
| Virtual Centre Channel | Supported |
| Digital Audio | Optical + coaxial output |
Camera Support
| AHD Video Inputs | Up to 4 × 1080P AHD cameras |
| 360° Camera | Built-in 360° panorama support |
| 360° Camera Inputs | 4-channel (uses all 4 camera inputs) |
| Front Camera | Supported |
| Reverse Camera | Supported |
Factory Features Retained
| Original Factory Settings | Retained |
| Factory AC Controls | Supported |
| Factory Reverse Sensors | Supported |
| Factory Reverse Camera | Compatible |
| Steering Wheel Controls | Supported |
| Factory Amplifier Control | Supported |
| Reverse Detection | Supported |
GPS Navigation
| Satellite Systems | GPS / GLONASS / BeiDou / Galileo / QZSS |
I/O & Compatibility
| USB Ports | 3 × USB 2.0 |
| Front Panel Port | USB Type-C charging port |
| Video Input | Up to 1080p @ 60FPS or 4K @ 30FPS |
| Video Output | USB Type-C direct out |
| External Microphone | Supported |
| Photo Formats | JPG, PNG, BMP, SVG & more |
| Audio Formats | MP3, AAC, FLAC, AIFF, DTS, AMR & more |
| Video Formats | MP4, AVI, MKV, RMVB, MOV, MPEG, WMV & more |
DAB+ Digital Radio
| DAB+ | Supported via external DAB+ module (included FREE) |
| Frequency Bands | Tailored for Australian DAB+ bands |
AM/FM Radio
| FM | 87.5–108MHz |
| AM | 522–1620kHz |
| Radio IC / DSP | Silicon Labs SI47925 |
| RDS / RBDS | Supported |
| Radio Antenna | Dedicated radio antenna interface |
Power & Protection
| Power Input | 9V–16V |
| Typical Vehicle Voltage | 14.4V |
| Protection | Over-voltage and under-voltage protection |
