Product Description

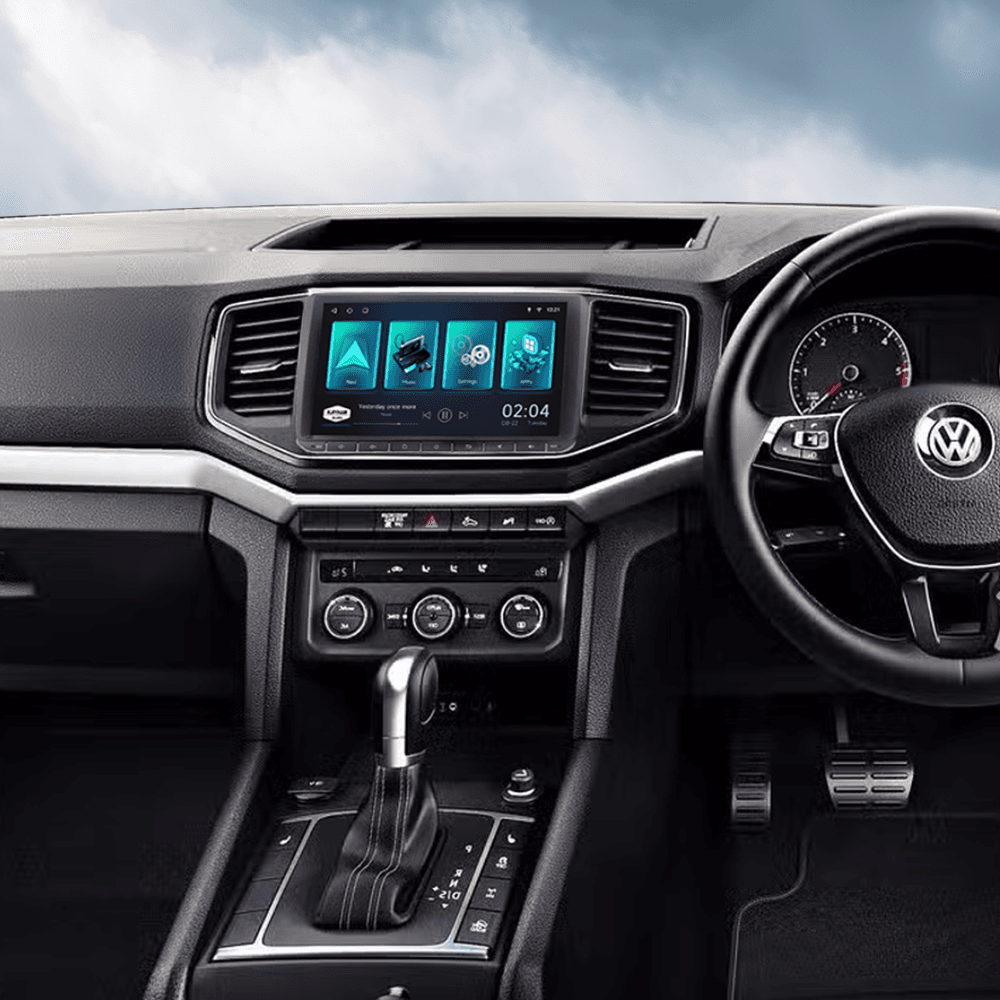

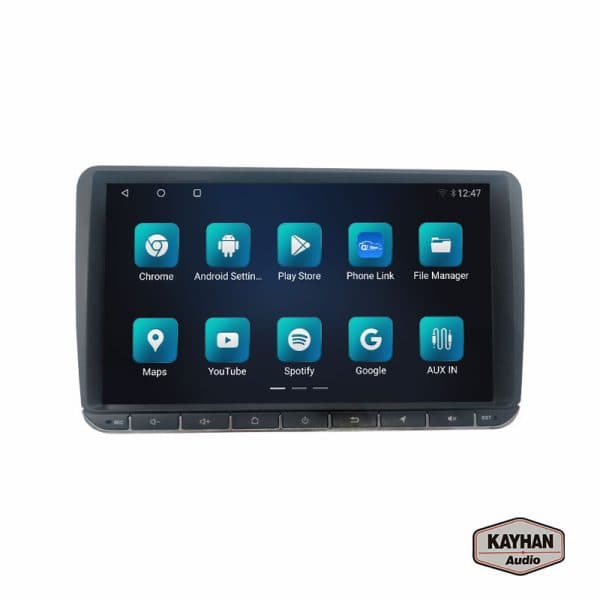

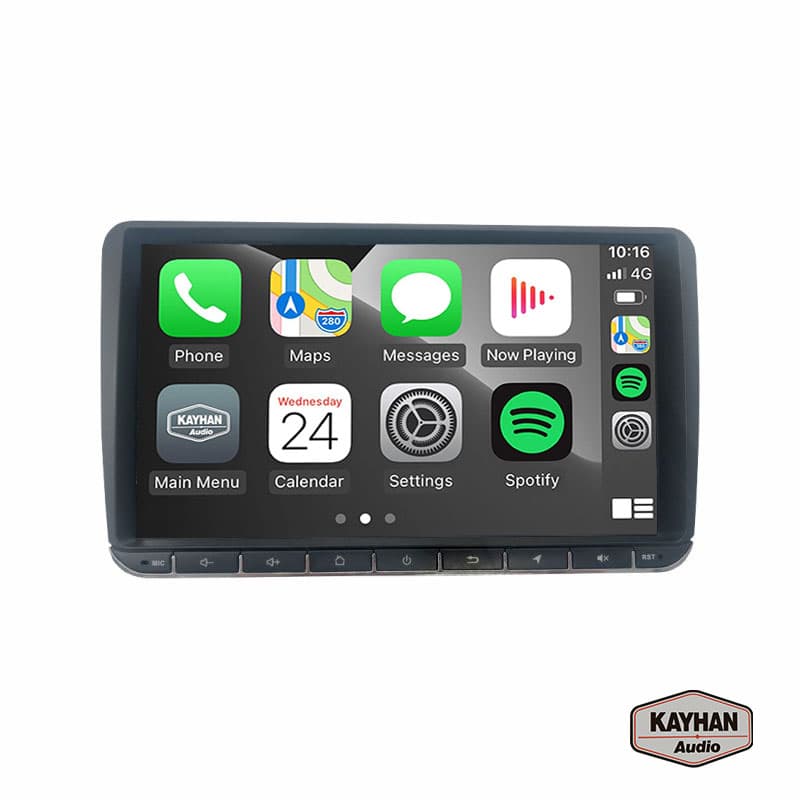

The Kayhan Audio Version 6 head unit is a 9-inch replacement for every Volkswagen Amarok built between 2010 and 2022, covering both the pre-facelift and 2017-on facelift dash layouts in one unit. It brings wireless Apple CarPlay and Android Auto, built-in SatNav, Bluetooth, and a factory-style touchscreen finish to a vehicle whose genuine VW infotainment (the MIB-based Composition Media system) is known among Amarok owners for touchscreen failures that VW itself classes as non-repairable, requiring a full unit swap through a dealer. This Version 6 unit is designed to retain steering wheel controls and supports factory reverse camera integration, with Kayhan's wired reversing cameras available as an add-on for Amaroks not already fitted with one. It's built for the way Amaroks are actually used: tradie daily drivers, tow rigs, and touring setups that need reliable navigation and phone mirroring without the factory unit's ongoing reliability issues. Ships worldwide from Kayhan's Australian workshop.
Toyota Aqua 2012–2014 9" V6+ Car Stereo – Technical Specifications
Display
| Screen Size | 9 inches |
| Screen Type | TFT-LCD, Active Matrix |
| Touch Panel | Capacitive multi-touch |
| Colour Depth | 16.7 million colours |
| Backlight | LED |
| Fitment | Vehicle-specific fit for Toyota Aqua 2012–2014 |
| Fascia | Surrounding fascia included |
Performance
| Platform | Kayhan Audio Version 6+ |
| Operating System | Android 14 |
| Processor | Qualcomm Snapdragon SM6225 Octa-Core |
| CPU | 64-bit Cortex-A73, up to 2.8GHz |
| GPU | Qualcomm Adreno 610 |
| Process Technology | 6nm |
| RAM | 8GB LPDDR4 |
| Storage | 256GB eMMC |
Smartphone Integration
| Apple CarPlay | Wireless / Wired |

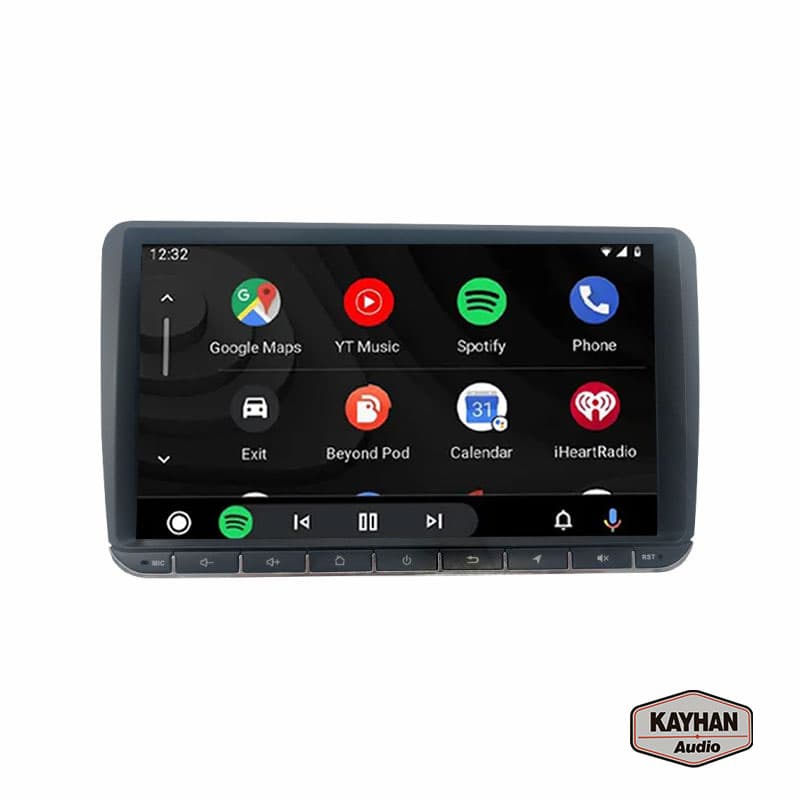

| Android Auto | Wireless / Wired |
| Bluetooth Hands-Free Calling | Supported |
| Bluetooth Music Streaming | Supported |
| Phone Interconnection | Supported |
4G LTE, Wi-Fi & Bluetooth
| 4G Modem | LTE Cat 6 |
| Maximum Downlink | Up to 300Mbps |
| Carrier Aggregation | 2 × 20MHz |
| SIM | Built-in eSIM support + external SIM card support |
| Wi-Fi | 5GHz |
| Bluetooth | Bluetooth 5.0 |
Audio
| Built-In Amplifier | 45W × 4 |
| RCA Audio Output | 8-channel, 4V RMS |
| Audio Support | 5.1-channel, 2-way and 3-way systems |
| Equaliser | 48-band EQ |

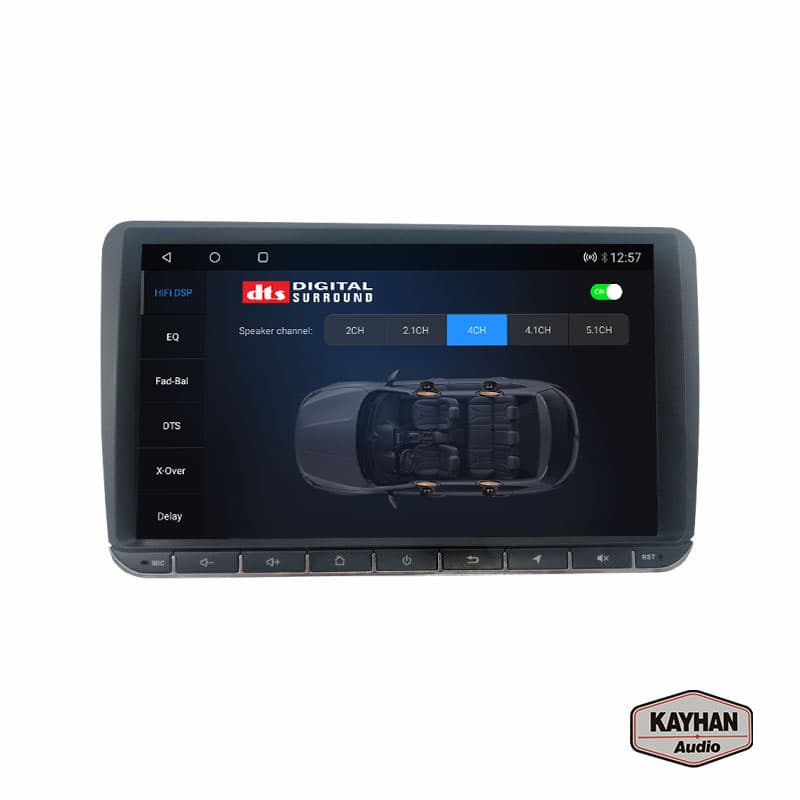

| Sound Processing | DTS HiFi-grade digital sound effects |
| Sound Field | Multiple surround sound modes |
| Bass Enhancement | TruBass |
| Virtual Centre Channel | Supported |
| Digital Audio | Optical + coaxial output |
Camera Support
| AHD Video Inputs | Up to 6 × 1080P AHD video inputs |

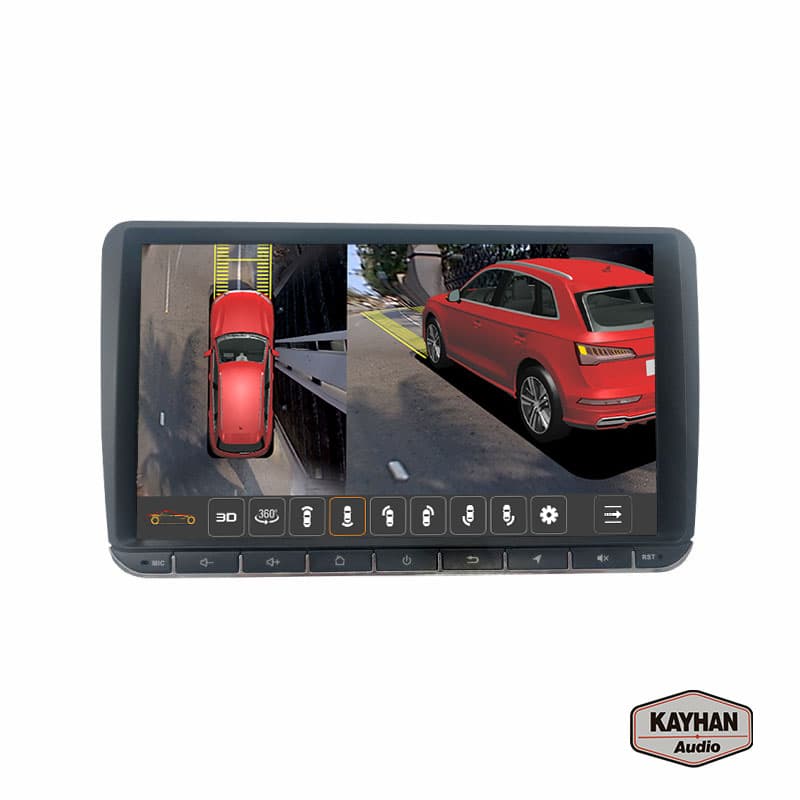

| 360° Camera | Built-in 360° panorama support |
| 360° Camera Inputs | 4-channel |
| Front Camera | Supported |
| Reverse Camera | Supported |
Factory Features
| Steering Wheel Controls | Supported (where fitted) |
GPS Navigation
| Satellite Systems | GPS / GLONASS / BeiDou / Galileo / QZSS |
USB & Connectivity
| USB Cables Included | 3 |
| USB Type-C | Video-out port at rear of unit |
| USB Media Playback | Supported |
| Dedicated USB | DAB / USB camera support |
| External Microphone | Supported |
Radio

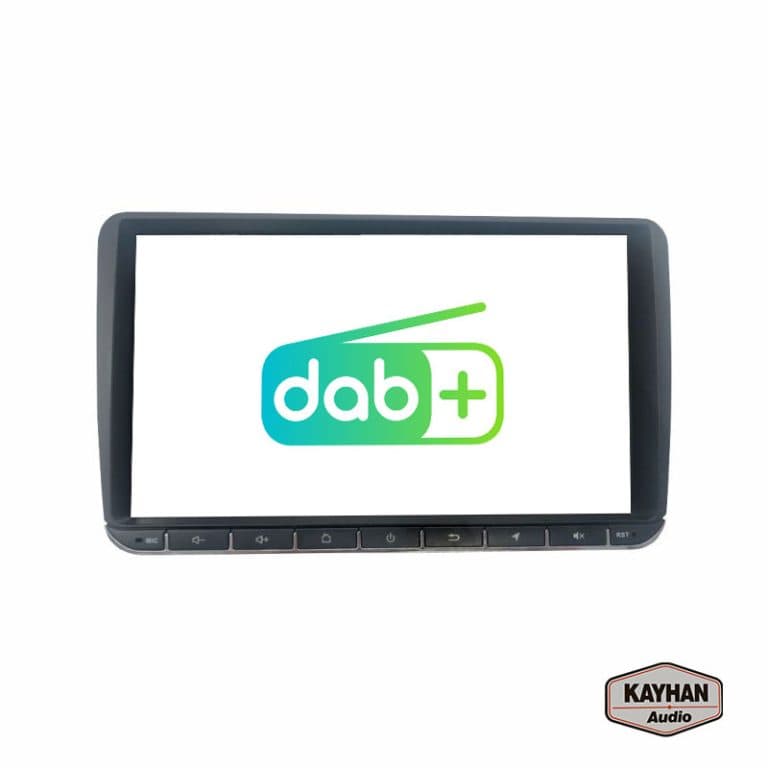

| DAB+ | FREE external DAB+ module included (Australian bands) |

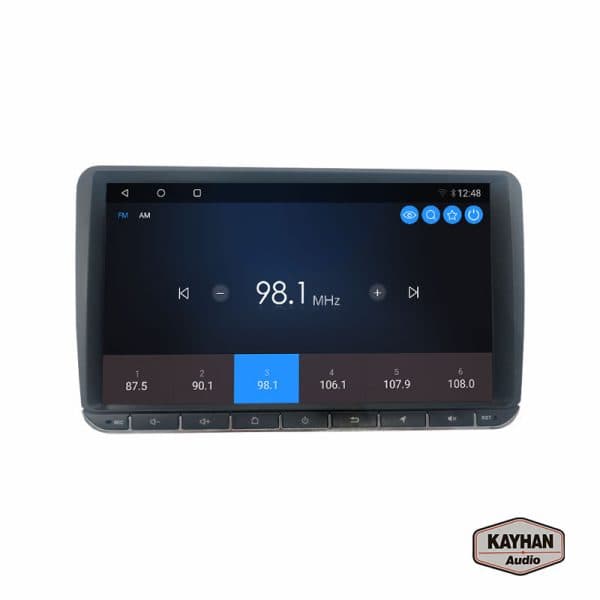

| FM | 87.5–108MHz (full Australian band) |
| AM | 522–1620kHz |
| Radio IC / DSP | Silicon Labs SI47925 |
| RDS / RBDS | Supported |
| Radio Antenna | Dedicated radio antenna interface |
Power & Protection
| Power Input | 9V–16V |
| Typical Vehicle Voltage | 14.4V |
| Protection | Over-voltage and under-voltage protection |
Installation
| Installation | Easy Plug & Pla |
Compatibility
| Vehicle | Toyota Aqua 2012–2014 |
Compatible Vehicles
This product supports the following vehicle models
No compatible vehicle models available
Frequently Asked Questions
Yes. This Version 6 unit is designed to cover the full 2010-2022 Amarok range, spanning both the pre-facelift and 2017-on facelift dash layouts. Confirm your exact build year and fascia at checkout so the correct fitment kit is sent.
Yes, both are supported wirelessly, so the unit connects automatically once your phone is paired, with no cable needed each time you start the car.
The Version 6 unit has built-in GPS navigation as standard, so it works even without a phone connected. You can still use Apple Maps, Google Maps or Waze through CarPlay or Android Auto if you prefer.
Yes, steering wheel controls are retained through the plug and play harness, so functions like volume and track skip continue to work as they did with the factory unit.
Kayhan Audio's reversing cameras are wired only. If your Amarok already has a factory reverse camera, the unit is designed to integrate with it; if not, a wired camera can be added separately.
Not necessarily. VW classes a failed MIB Composition Media touchscreen as non-repairable and typically directs owners to a full genuine unit replacement, which is expensive. A Version 6 head unit upgrade replaces the faulty unit outright with a new touchscreen, so it solves the same problem without the dealer cost.
The kit is plug and play, so a confident DIYer with basic tools can fit it, though professional installation is recommended if you're not comfortable working around your dash and electrical connections.
Yes, Kayhan Audio ships worldwide from its Australian workshop, in addition to servicing customers across Australia.
