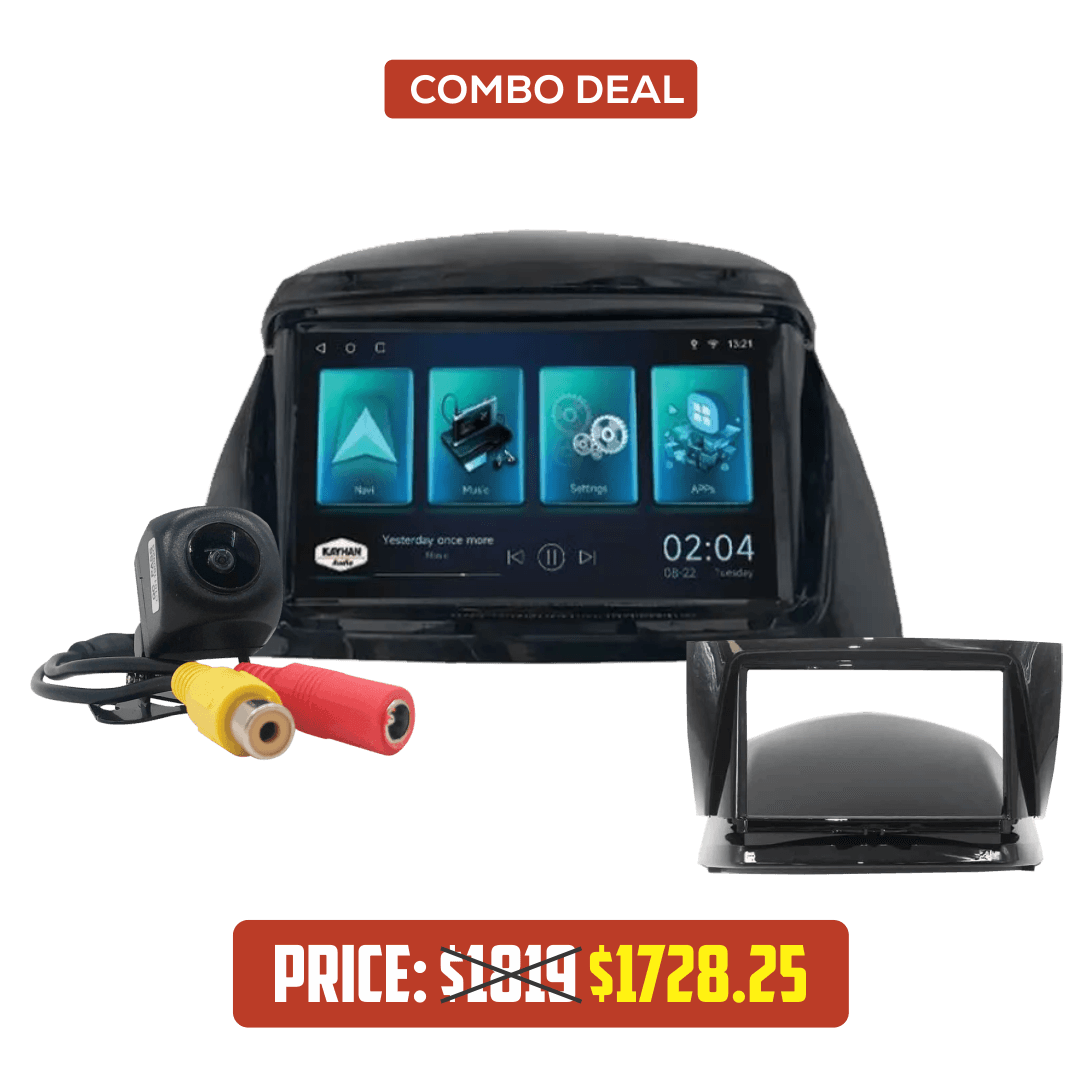

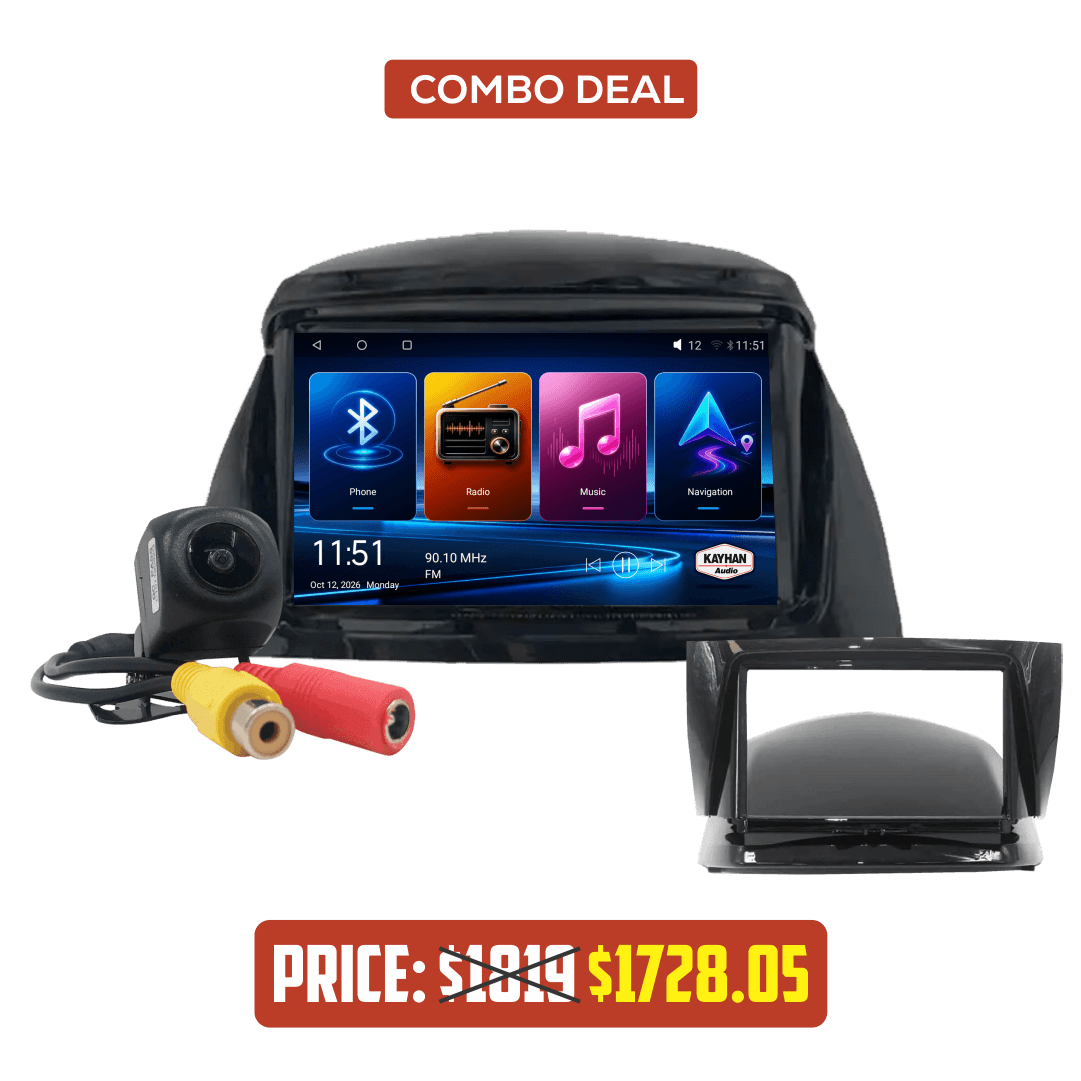

Combo Deal for Ford Falcon FG MK1 to MK2 Upgrade – Car Stereo with SatNav + Fascia Kit + HD Reversing Camera

Ford Falcon FG MK1 2006-2011 8" V6+ Car Stereo – Technical Specifications

Display

Screen Size	8 inches
Screen Type	TFT-LCD, Active Matrix
Touch Panel	Capacitive multi-touch
Colour Depth	16.7 million colours
Backlight	LED
Fitment	Vehicle-specific fit for Ford Falcon FG MK1 2006-2011
Fascia	Surrounding fascia included

Performance

Platform	Kayhan Audio Version 6+
Operating System	Android 14
Processor	Qualcomm Snapdragon SM6225 Octa-Core
CPU	64-bit Cortex-A73, up to 2.8GHz
GPU	Qualcomm Adreno 610
Process Technology	6nm
RAM	8GB LPDDR4
Storage	256GB eMMC

Smartphone Integration

Apple CarPlay	Wireless / Wired
Android Auto	Wireless / Wired
Bluetooth Hands-Free Calling	Supported
Bluetooth Music Streaming	Supported
Phone Interconnection	Supported

4G LTE, Wi-Fi & Bluetooth

4G Modem	LTE Cat 6
Maximum Downlink	Up to 300Mbps
Carrier Aggregation	2 × 20MHz
SIM	Built-in eSIM support + external SIM card support
Wi-Fi	5GHz
Bluetooth	Bluetooth 5.0

Audio

Built-In Amplifier	45W × 4
RCA Audio Output	8-channel, 4V RMS
Audio Support	5.1-channel, 2-way and 3-way systems
Equaliser	48-band EQ
Sound Processing	DTS HiFi-grade digital sound effects
Sound Field	Multiple surround sound modes
Bass Enhancement	TruBass
Virtual Centre Channel	Supported
Digital Audio	Optical + coaxial output

Camera Support

AHD Video Inputs	Up to 6 × 1080P AHD video inputs
360° Camera	Built-in 360° panorama support
360° Camera Inputs	4-channel
Front Camera	Supported
Reverse Camera	Supported

Factory Features

Steering Wheel Controls

Supported (where fitted)

GPS Navigation

Satellite Systems

GPS / GLONASS / BeiDou / Galileo / QZSS

USB & Connectivity

USB Cables Included	3
USB Type-C	Video-out port at rear of unit
USB Media Playback	Supported
Dedicated USB	DAB / USB camera support
External Microphone	Supported

Radio

DAB+	FREE external DAB+ module included (Australian bands)
FM	87.5–108MHz (full Australian band)
AM	522–1620kHz
Radio IC / DSP	Silicon Labs SI47925
RDS / RBDS	Supported
Radio Antenna	Dedicated radio antenna interface

Power & Protection

Power Input	9V–16V
Typical Vehicle Voltage	14.4V
Protection	Over-voltage and under-voltage protection

Installation

Installation

Easy Plug & Play

Compatibility

Vehicle

Ford Falcon FG MK1 2006-2011
