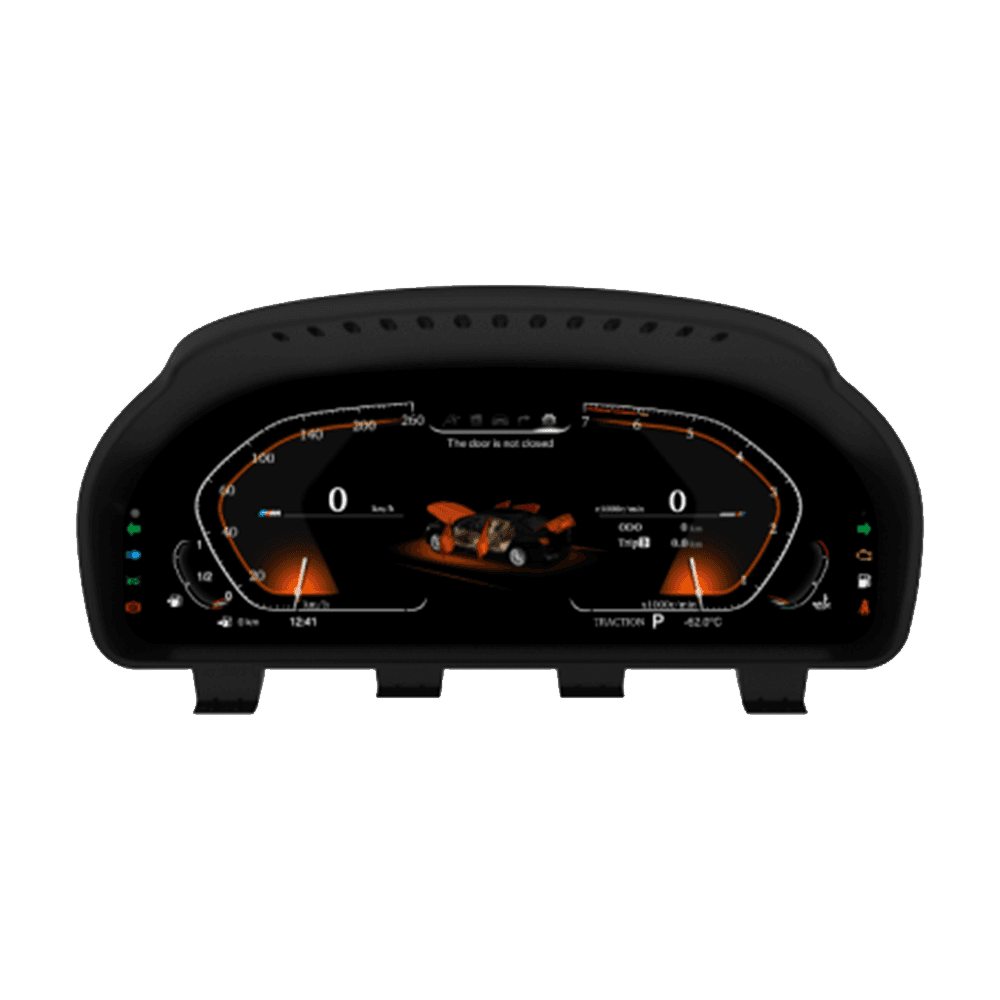

Digital Cluster for BMW X6 NBT (F16, 2014–2017)

Upgrade your vehicle’s dashboard with this advanced 12.3-inch Digital Instrument Cluster, designed to deliver real-time vehicle data, smart connectivity, and a modern driving experience.

Powered by a T507 quad-core processor (1.5GHz) and running on Linux 4.9, the cluster ensures smooth performance, fast response, and stable operation. With 1GB RAM and 4GB internal storage, it handles driving data, UI transitions, and connectivity features effortlessly.

The 12.3-inch IPS display offers a crisp 1920 × 720 resolution, high brightness, and wide viewing angles, making all information clearly visible in any lighting condition.

Smart Connectivity & Audio Integration

Equipped with Bluetooth 5.3 and dual Bluetooth support, the cluster allows simultaneous connection to multiple devices. It supports hands-free calling, music playback, and system alerts via the built-in speaker or through your vehicle’s head unit using Bluetooth audio output—keeping your drive safer and more convenient.

Comprehensive Vehicle Data Monitoring

This digital cluster provides detailed, real-time vehicle information, including:

• Speed, RPM, and gear position

• Oil temperature and oil pressure

• Coolant (water) temperature

• Fuel consumption data

• Vehicle body balance display

• Original tyre information (requires optional Bluetooth TPMS sensors, sold separately)

All critical driving and vehicle status data is displayed clearly and intuitively.

Multiple Driving Modes

Choose from three customizable UI themes to match your driving style:

• Classic Mode – clean and traditional layout

• Sport Mode – performance-focused design

• Off-Road Mode – optimized for rugged terrain driving

Automotive-Grade Electrical Design

Built for reliability, the cluster operates within 9V–16V, with low power consumption and an ultra-low standby current under 3mA, ensuring minimal battery drain.

A perfect blend of performance, intelligence, and modern design—this digital instrument cluster transforms your dashboard into a smart driving command center.
